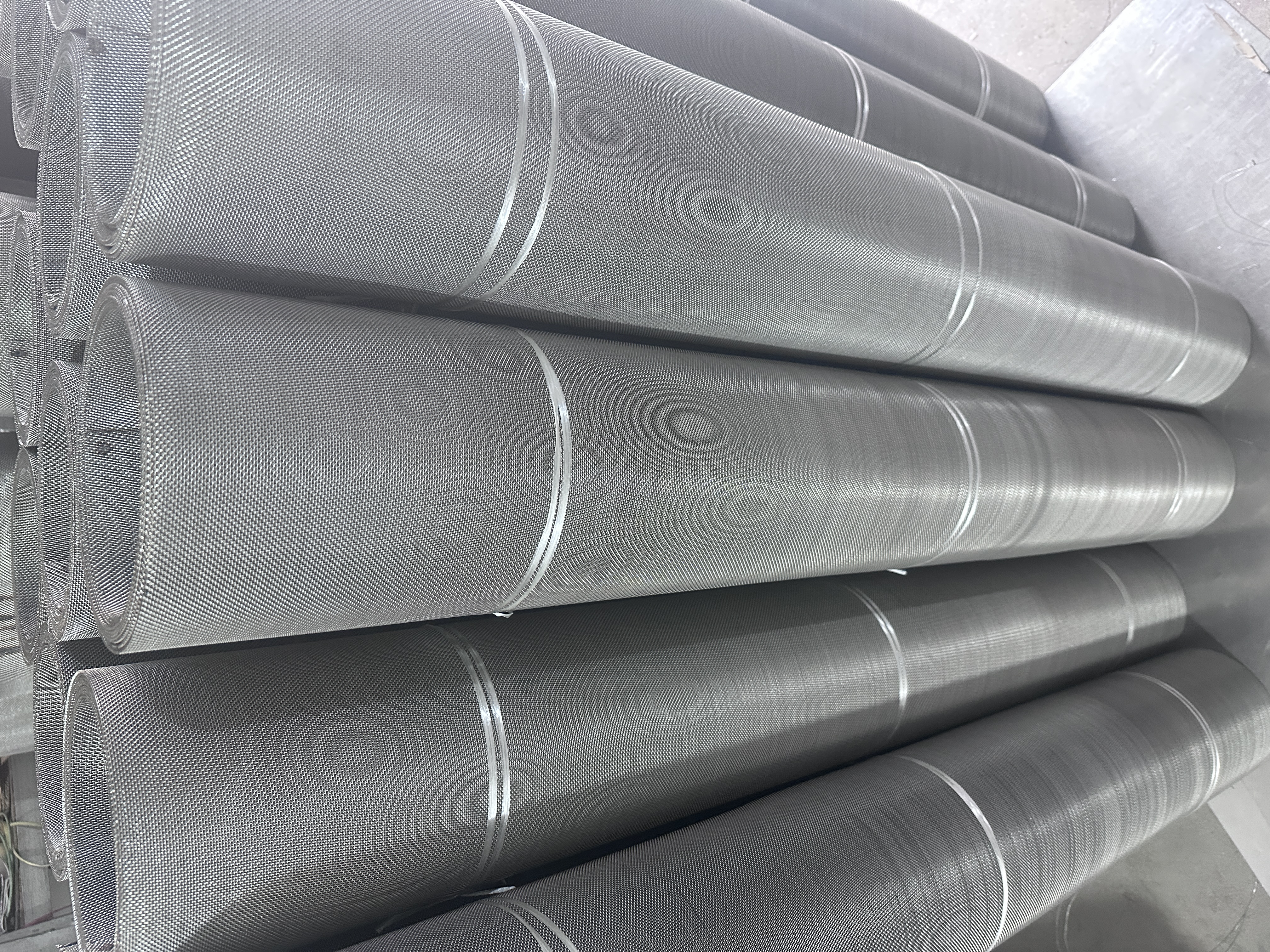

Stainless Steel Reverse Weave Mesh

Asymmetric Dense Warp/Sparse Weft · incl. Reverse Dutch & 5-Heddle · 15-400μm

Stainless steel reverse weave filter mesh features dense warp and sparse weft, with significant differences in wire diameter and mesh count between warp and weft — fine dense warp wires for precision filtration, thick sparse weft wires for structural support. This asymmetric structure delivers high filtration precision, high mechanical strength and smooth backwashable surface. Includes reverse dutch weave (plain/twill) and five-heddle weave.

Material201, 304, 304L, 316, 316L, 321, 310S, 904L, Monel400, etc.

TypesReverse Plain Dutch, Reverse Twill Dutch, Five-Heddle

Mesh Count48×10 to 720×140 (5-heddle: 15×13 to 108×60)

Filtration15-400μm (5-heddle: 77-850μm)

Standard Width1m, 1.2m, 1.5m; 5-heddle up to 4-6m

Standard Length30m/roll

Lead Time3-15 working days

Inquire Now 📞 Call Us

Stainless Steel Reverse Weave Mesh

Features

⚖️

Asymmetric Structure

Fine warp for filtration + thick weft for support

🧊

Smooth Surface

One side extremely smooth, automatic cake release, backwash friendly

💧

High Flow Low Resistance

Rectangular openings, large flow rate, low energy consumption

🌡️

High Pressure & Temp

High mechanical strength, anti-vibration, for continuous high-pressure

Specifications

Type	Mesh(W×W)	Precision	Material	Application
Rev. Plain	66×18	~200	304/316L	Plastic extrusion, petrochemical
Rev. Plain	130×30	~100	304/316L	Pharma food, hydraulic
Rev. Plain	290×60	~50	316L	Precision filtration, new energy
Rev. Plain	720×140	~15	316L	Ultra-precision, semiconductor
Rev. Twill	72×15	~250	304	Extrusion, screen changer
Rev. Twill	325×39	~55	316L	High-pressure filter, melt
5-Heddle	24×20	~490	304/316L	Paper dewatering, pulp washing
5-Heddle	48×25	~250	304/316L	Continuous filter, tailings
5-Heddle	108×60	~77	316L	Precision continuous filtration

Applications

Plastic & Rubber (largest): extruder screens, wire drawing/cast film/coating belts
Petrochemical: sand control screens, mud filtration, polymer melt, high-pressure cartridges
Pharma & Food: liquid medicine, syrup, edible oil, beer, juice precision filtration
Hydraulic: hydraulic oil, lubricant, fuel precision filtration
Paper (5-heddle core): pulp dewatering mesh, washing mesh, forming fabric
Continuous filtration: rotary drum, disc, horizontal belt filter media
New Energy & Electronics: battery slurry, semiconductor solvent, photovoltaic chemical
